Connections
SDI Video Inputs
1 x SD, HD or 1.5G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
SDI Video Outputs
1 x SDI Loop Output.
SDI Rates
270Mb, 1.5G
Analog Video Outputs
NTSC, PAL, S-Video and component SD/HD from 1.5G-SDI input.
Analog Audio Outputs
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
Digital Audio Outputs
2 channels of balanced AES/EBU audio.
SDI Redundant Input
Automatically switches over if main SDI input is lost.
Multi Rate Support
Auto detection of SD, HD or 1.5G-SDI.
Updates and Configuration
USB
Reclocking
Yes

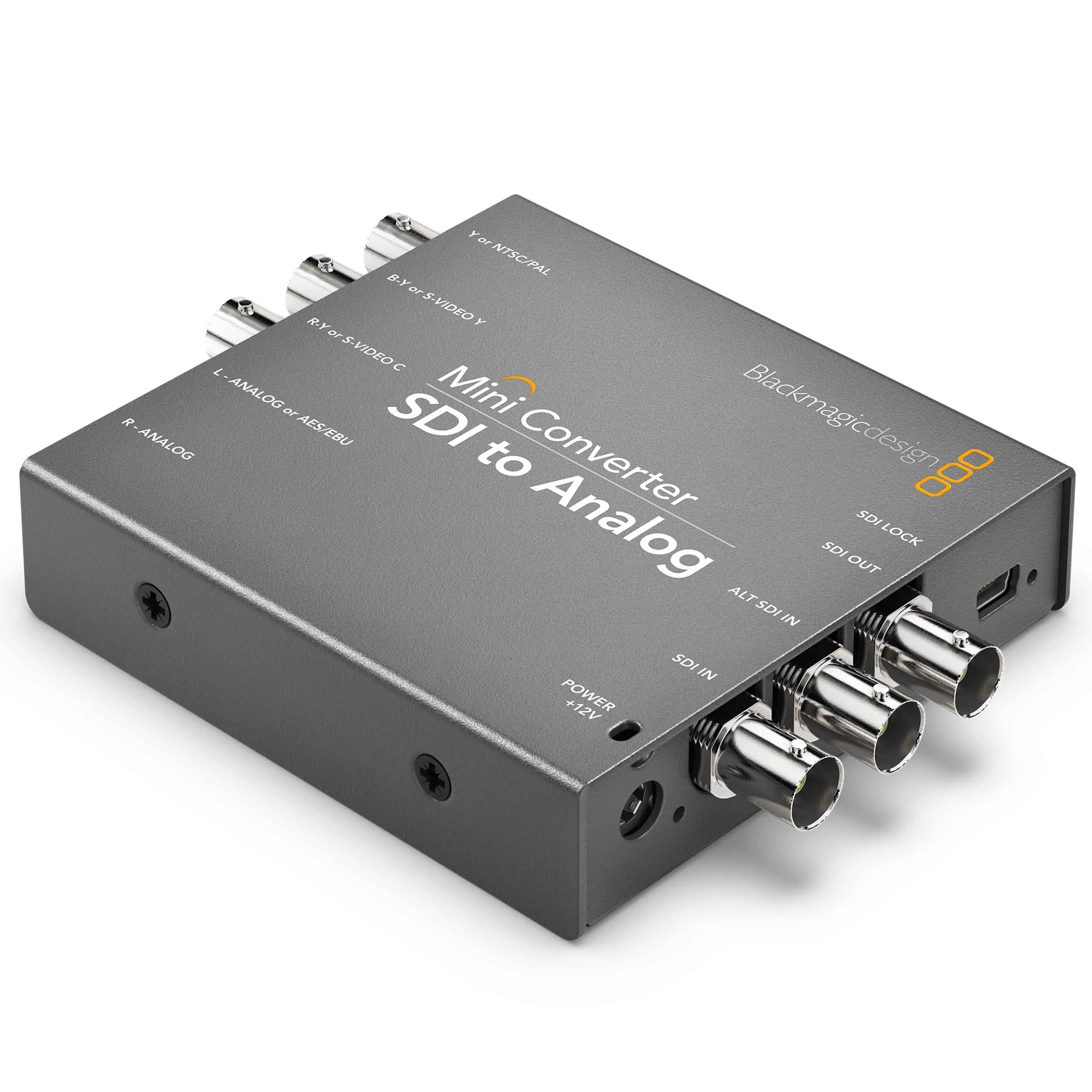

Mini Converter SDI to Analog
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU‐R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video connections are switchable between SD and HD.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Auto detection of SD, HD or 3G-SDI.
Analog Video Standards
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
1080i50, 1080i59.94, 1080i60
Analog Color Space
YUV
Analog Color Precision
4:2:2
Format Conversion
HD to SD down converter.
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
8.04 Watts
Operational Voltage Range
12 - 15V DC
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
