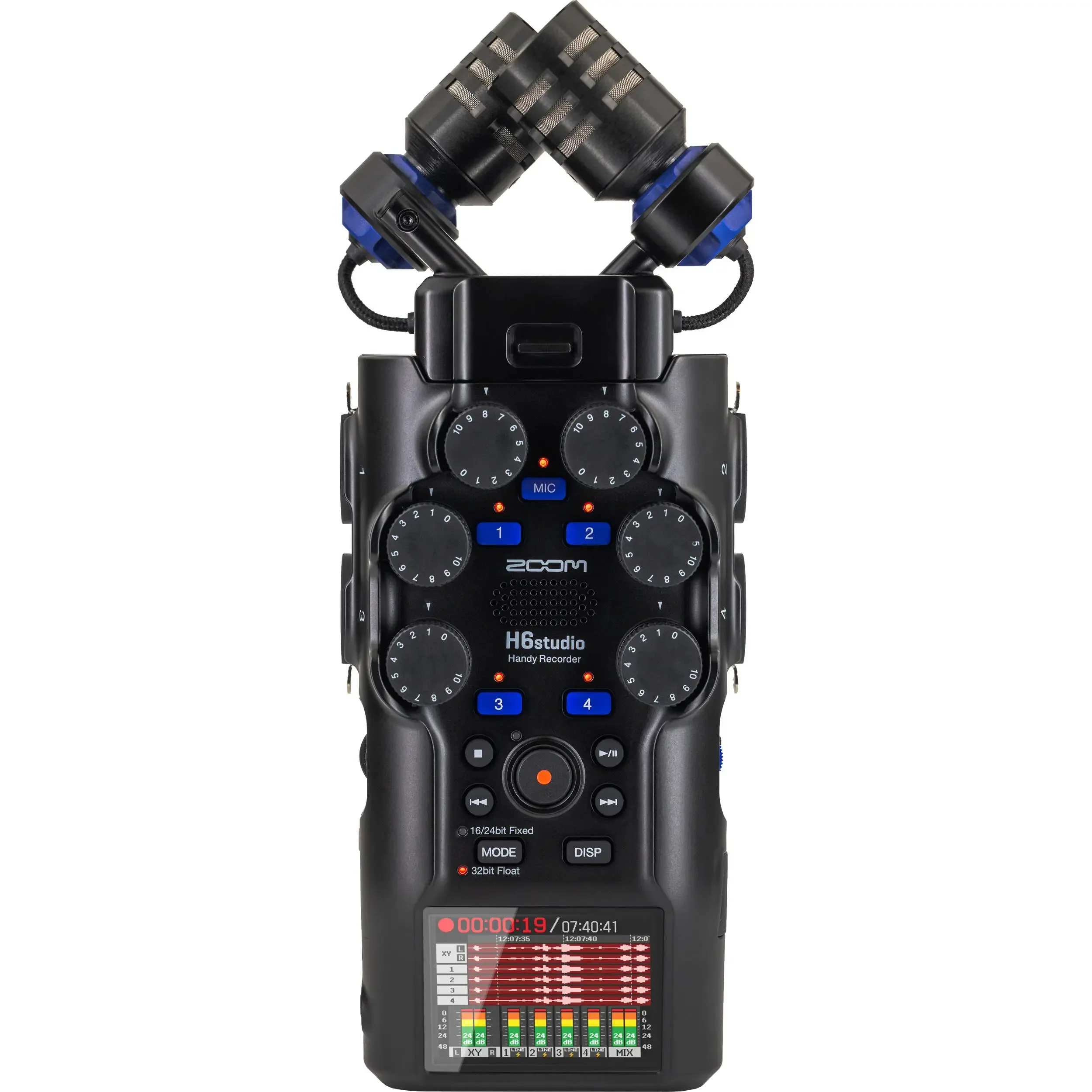

INPUT AND OUTPUT CHANNELS
Inputs Mic capsule 1
MIC/LINE (mono) 4
Outputs LINE OUT 1
Headphone 1
Built-In Speaker (MONO) 1
INPUTS
XY mic (XYH-5s) 90º XY stereo format
Pickup pattern Unidirectional
Sensitivity –41 dB/Pa at 1 kHz
Maximum sound pressure input 140 dB SPL
MIC/LINE IN (XYH-5s) Connector 1 stereo mini jack
Input gain −∞ – +60 dB
Input impedance 2 kΩ or more
Plug-in power 2.5 V

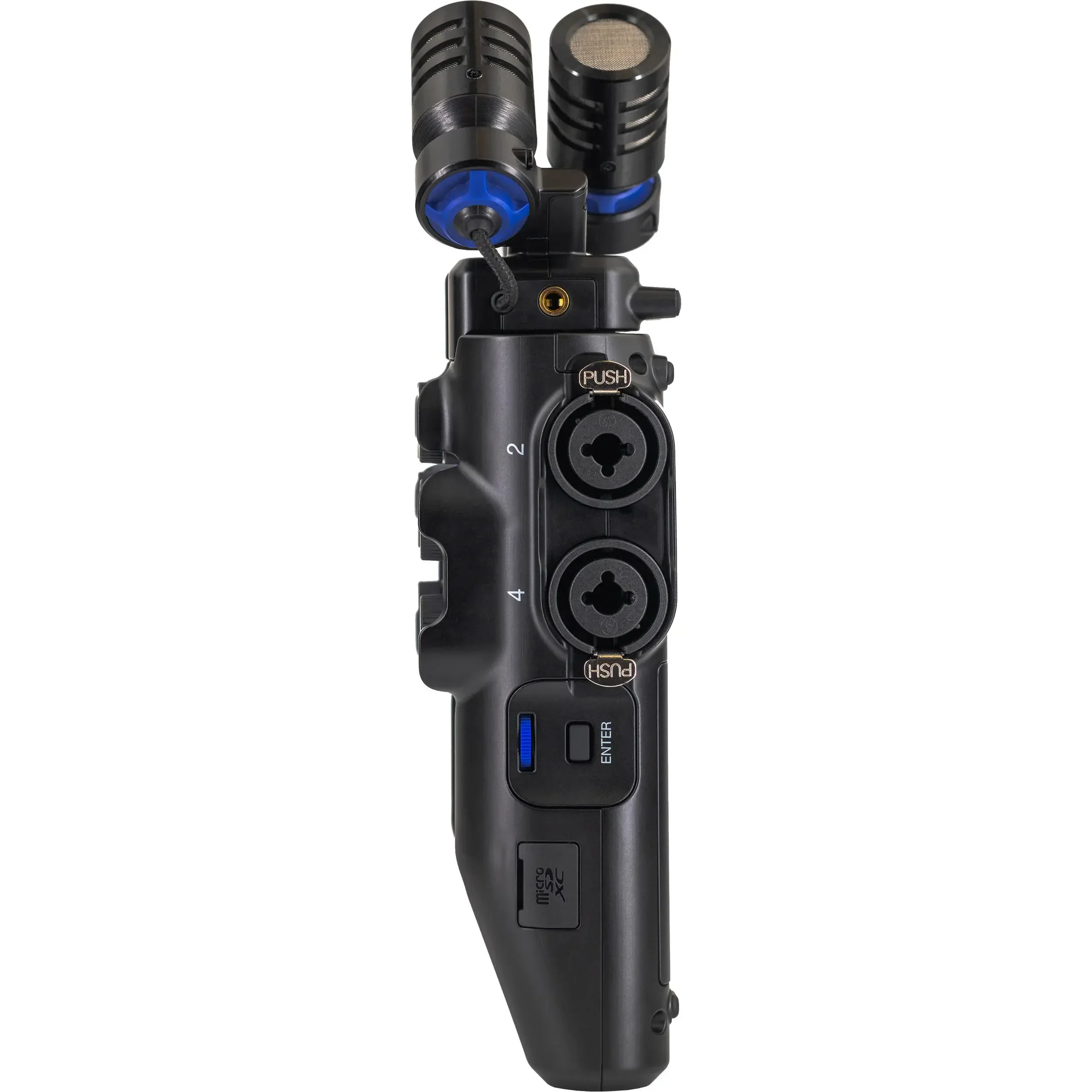

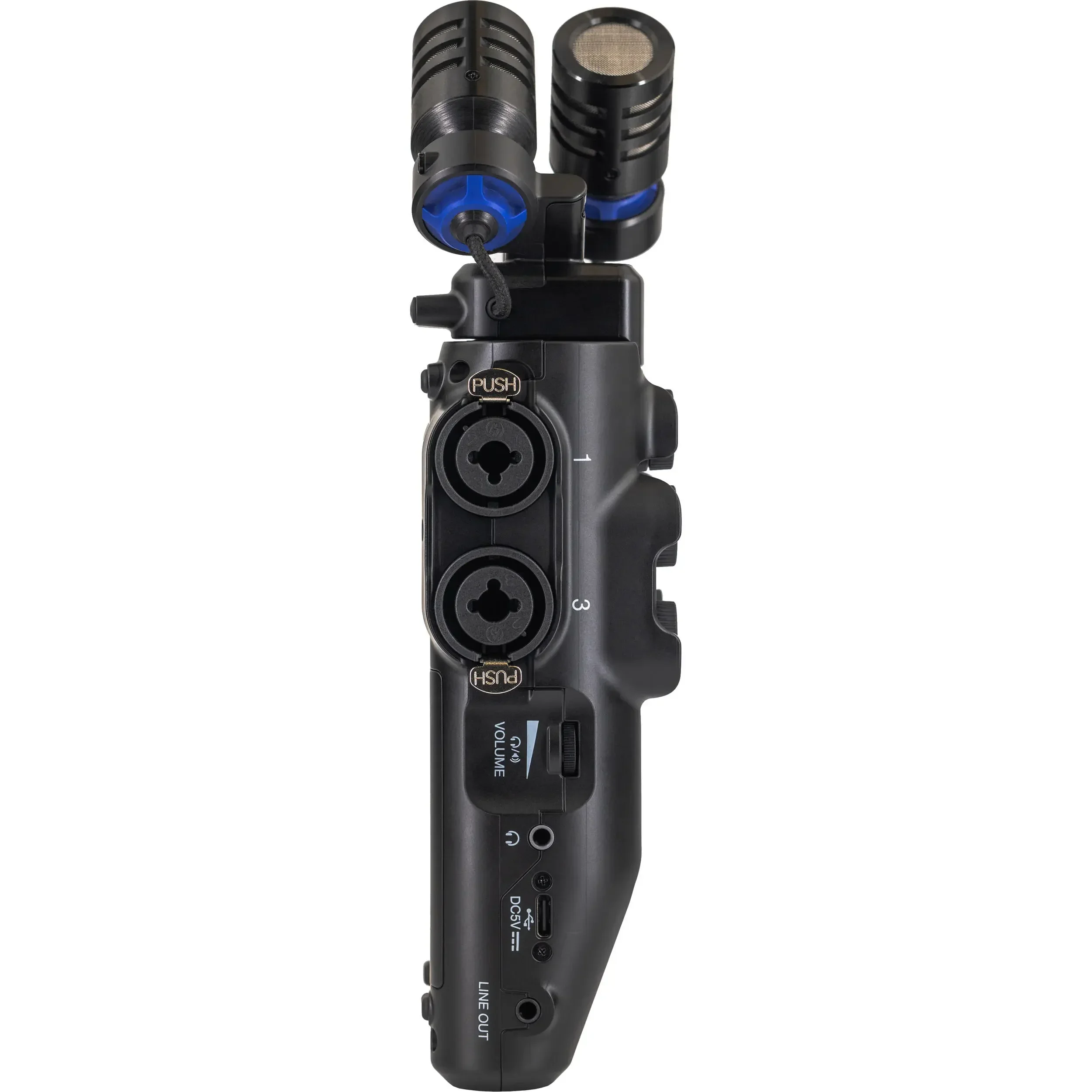

MIC/LINE (mono) Connectors 4 XLR/TRS combo jacks
(XLR：2 HOT, TRS：TIP HOT）
Input gain −∞ – +60 dB
Input impedance MIC: 3 kΩ or more
LINE: 3 kΩ or more
Maximum input level MIC: +4 dBu
LINE: +24 dBu
Phantom power +48 V
Equivalent input noise –127 dBu or less (IHF-A) at 150Ω input
OUTPUTS
LINE OUT Connector 1 stereo mini jack
Maximum output level +1 dBu
Output impedance 110 Ω or less
Headphone Connector 1 stereo mini jack
Maximum output level 20 ｍW + 20 ｍW（when 32 Ω load）
Output impedance 10 Ω or less
Built-in speaker Type 20 mm x 30 mm elliptical dynamic speaker
Effective maximum output 250 mW
RECORDER
Maximum simultaneous recording tracks 8
Maximum simultaneous playback tracks 6
Recording formats WAV
44.1/48/96/192 kHz,
16-bit/24-bit/32-bit float
mono/stereo
BWF and iXML formats supported
Recording media microSDHC memory cards
microSDXC memory cards
DISPLAY
2.00" full-color LCD 320 x 240
USB
Connector USB Type-C
• Use a USB cable that supports data transfer.
Audio Interface USB 2.0 High Speed
Input and output channels 6 in / 2 out (Multi)
2 in / 2 out (Stereo)
Sampling frequencies 44.1/48/96 kHz (audio interface only)
44.1/48 kHz (audio interface + onboard recording)
Bit depths 24-bit, 32-bit float
File transfer USB 2.0 High Speed
REMOTE
Dedicated wireless adapter ZOOM BTA-1

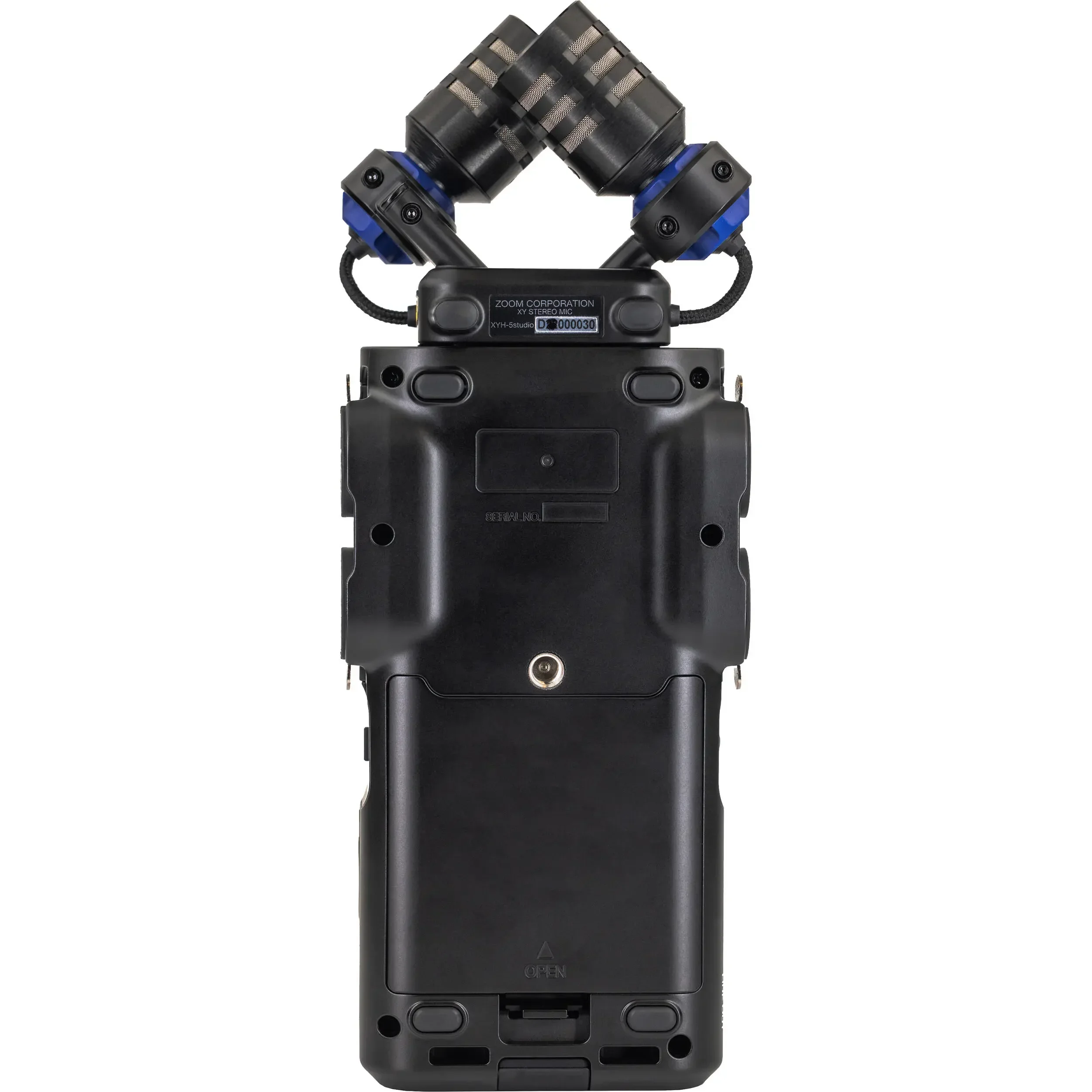

POWER

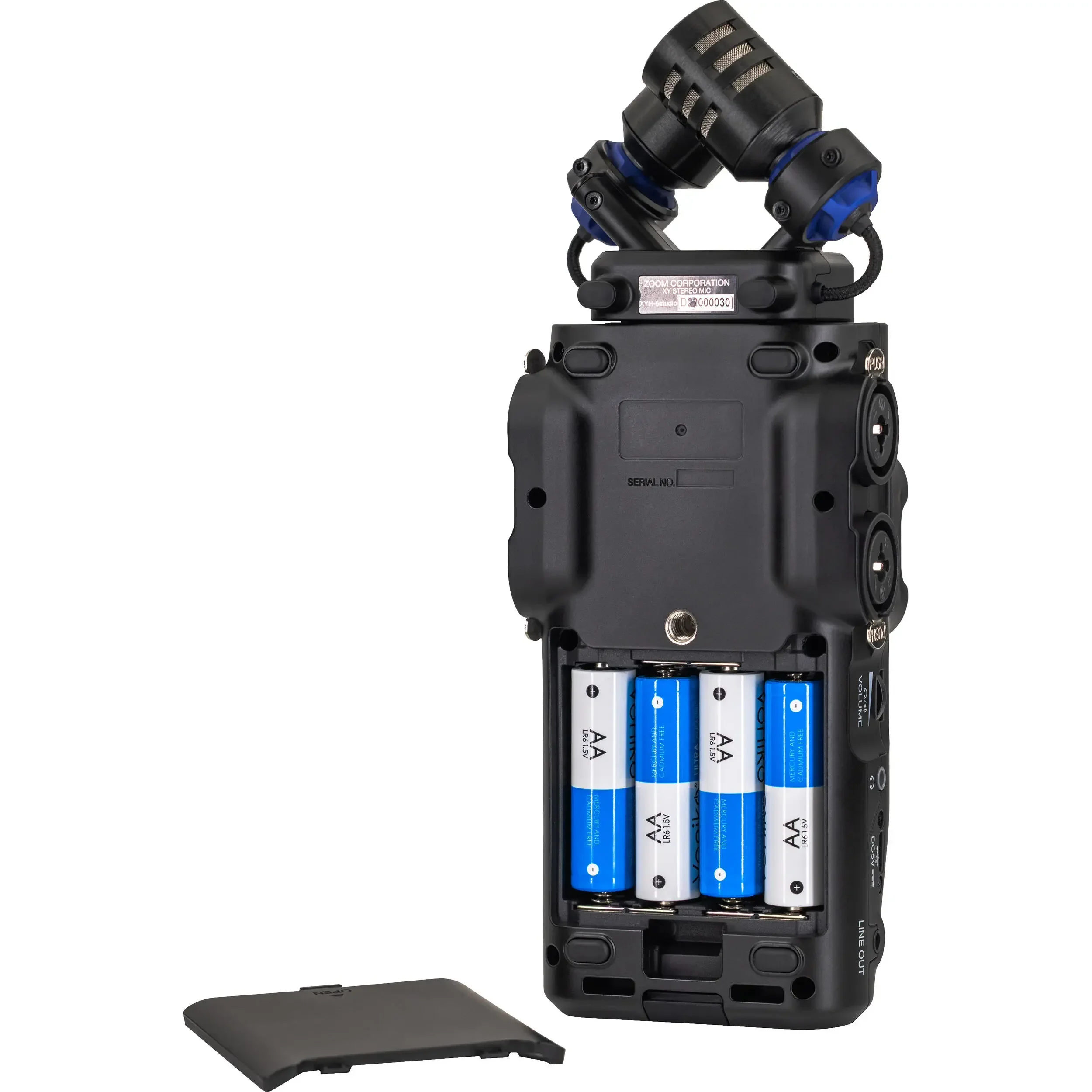

4 AA batteries Alkaline, lithium or rechargeable NiMH batteries
AC Adapter ZOOM AD-17 (DC 5 V/1 A)
• USB bus power is supported.
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track (XYH-5s) recording
Alkaline batteries About 15 hours
NiMH batteries (1900 mAh) About 12 hours
Lithium batteries About 26 hours
At 48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 6-track (XYH-5s and inputs 1–4) recording
Alkaline batteries About 4.5 hours
NiMH batteries (1900 mAh) About 5 hours
Lithium batteries About 11 hours
At 48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 6-track (XYH-5s and inputs 1–4) recording
Alkaline batteries About 2 hours
NiMH batteries (1900 mAh) About 3 hours
Lithium batteries About 6.5 hours
At 192 kHz/32-bit float with phantom power on (INPUTS 1-4), headphones used (33Ω load), LINE OUT used (10KΩ load), REMOTE used (BTA-1), Power Saving On, Display Brightness Bright
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
Power consumption 5 W maximum
Dimensions 86.0 mm (W) × 221.0 mm (D) × 54.6 mm (H)
Weight 477 g (including batteries)
