Mac Compatibility
Mac (M1/M2/M3) supports only one display
Mac (M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max, M1/M2 Ultra, or M4) supports two displays
Mac (Intel) with Thunderbolt 3 ports supports two displays, up to two 6K
macOS 14+
macOS Tahoe compatible
Windows Compatibility
Windows computer with Thunderbolt 5 or 4 ports
Windows computer with USB4 ports
Windows 11
Chromebook Compatibility
Chromebook with Thunderbolt 4 ports
Chromebook with USB4 ports
Current ChromeOS
iPad Pro Compatibility
M series iPad Pro
M1/M2 iPad Pro supports only one mirrored display
Current iPadOS
Displays Compatibility
For computers and displays compatibility information, see the following PDF
Displays compatibility PDF download link.
HDR Compatibility
See Apple Support Note for Mac HDR information
If your Windows computer supports HDR, see this Microsoft Support Note for Windows HDR information
Hardware
Part Number
Thunderbolt hub
Anodized extruded 6063 aluminum alloy

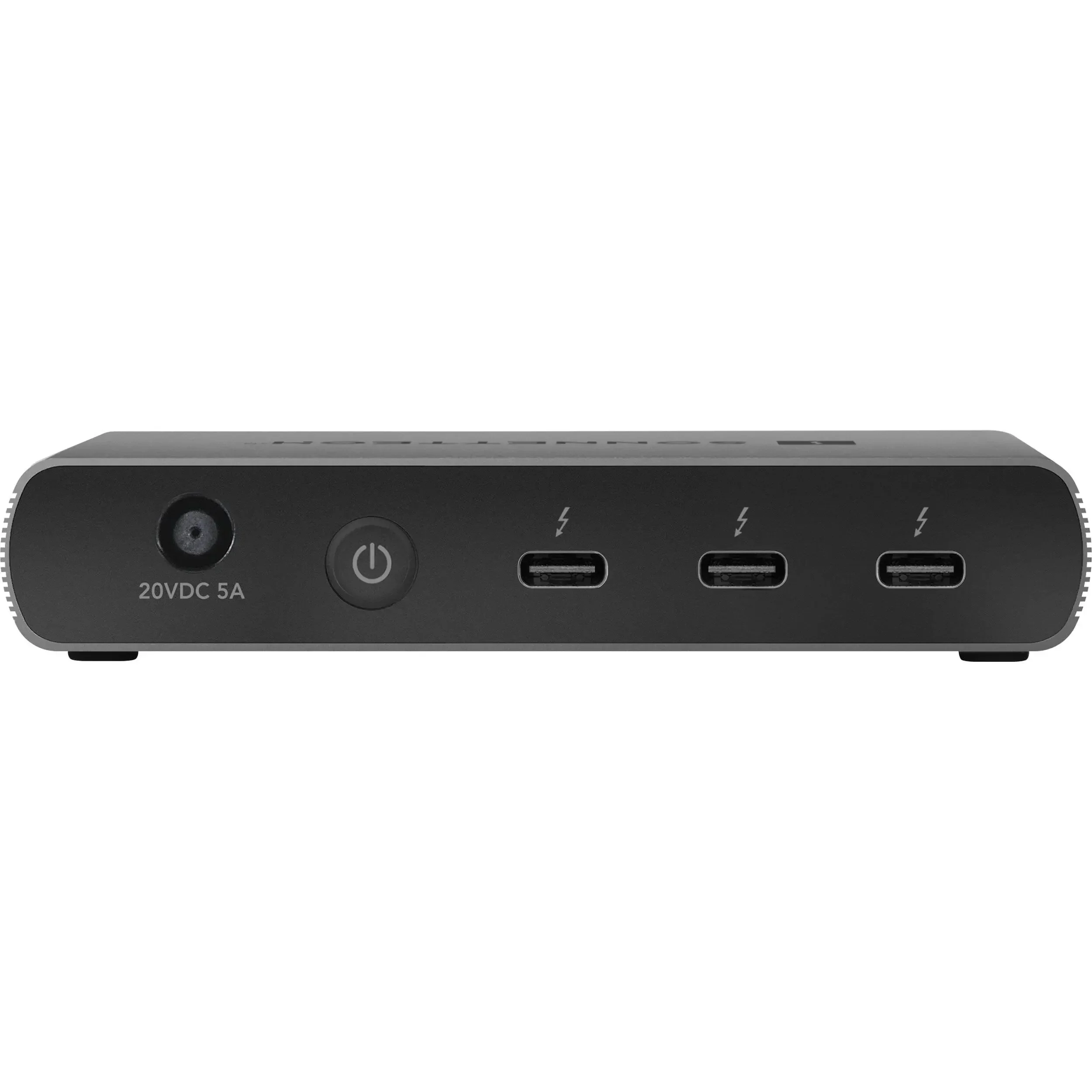

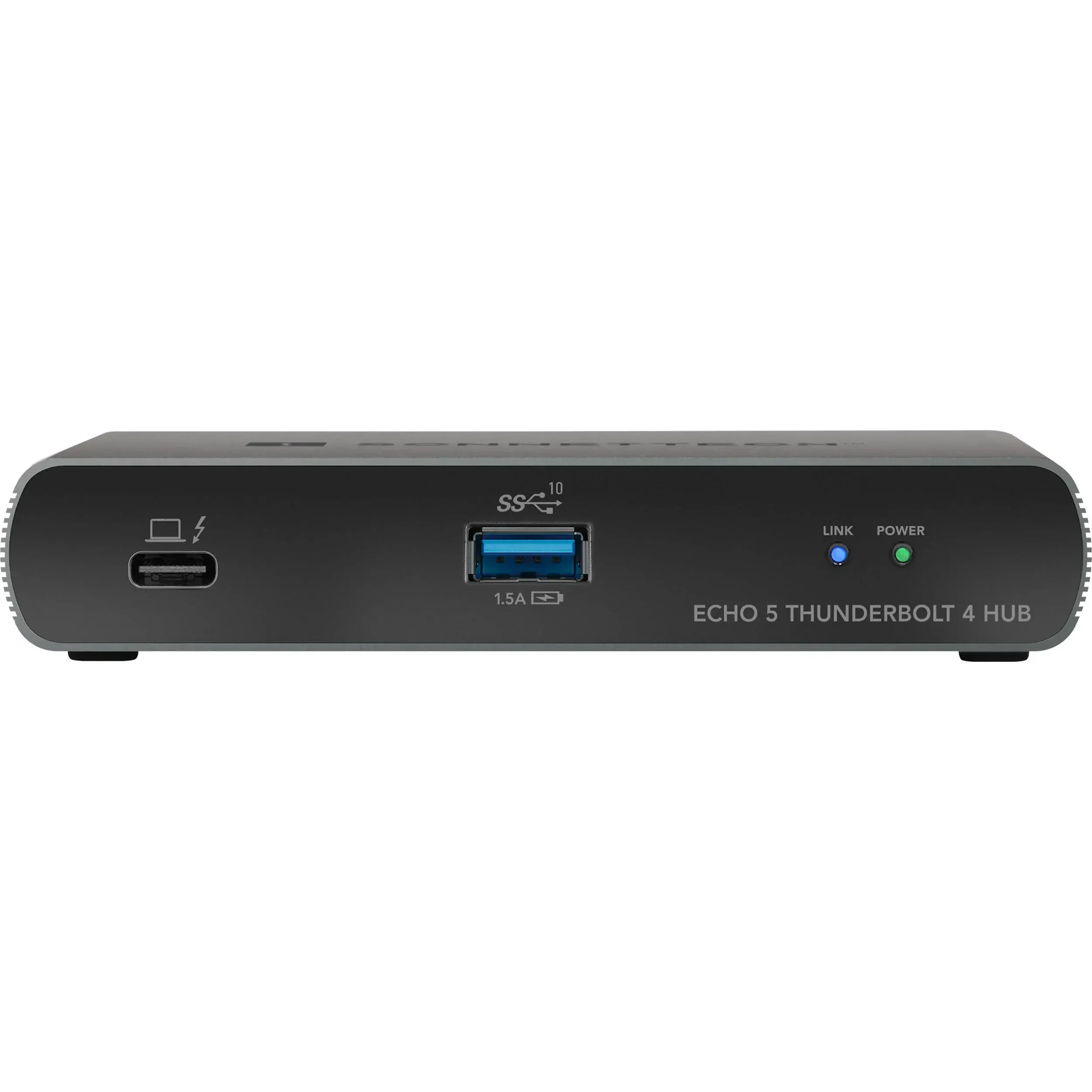

External Connectors
Four Thunderbolt 4 ports
USB 3.2 Gen 2 (10Gbps) Type A charging port
Power connector
Thunderbolt 4 Computer Port
Power Delivery
Provides laptop charging up to 85W(1)
Cables Supported
Thunderbolt 4 and Thunderbolt 5 cables
100W ≤ 0.8-meter 40Gbps Thunderbolt cables
Cables Not Supported
60W 40Gbps Thunderbolt cables
≥ 1.0-meter 40Gbps Thunderbolt cables
Thunderbolt 4 Peripherals Ports
Connectivity
With USB-C connector
Peripherals Supported
Thunderbolt 4 and Thunderbolt 3 devices
Thunderbolt 5 devices (at Thunderbolt 4 speeds)
USB4
USB 3, 2.0, and 1.1 devices
Thunderbolt 3 and USB-C monitors
DisplayPort and HDMI monitors(2)
Charging
15W capacity to charge iPad, iPhone, or other device supporting PD charging
Supports simultaneous charging and syncing
USB 3.2 Gen 2 Type A Port
Connectivity
With USB Type A connector
Peripherals Supported
USB 3, 2.0 and 1.1 devices
Data Transfer Rate
USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps
Charging
7.5W capacity to charge iPad, iPhone, or other device
USB Battery Charging 1.2–compliant
Supports simultaneous charging and syncing
Power Adapter
Universal 100W, 100-240V AC, 50-60 Hz
Power Delivery
Provides laptop charging up to 85W(1)
Operating Temperatures
0˚C to 35˚C (32˚F to 95˚F)
Dimensions (WxDxH)
Hub: 5.1 x 2.8 x 0.9 in. (12.9 x 7.2 x 2.16 cm)
Power Supply: 2.2 x 5.8 x 1.3 in. (5.6 x 14.8 x 3.2 cm)
Weight
Hub and Power Supply: 1.35 lbs (0.61 kg)
Complete Package: 2.30 lbs (1.04 kg)
Compliance
RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety
FCC Part 15, Subpart B
CISPR 32 / EN 55032
UKCA
Power Supply (PSE certified; UL certified; VCCI certified)
