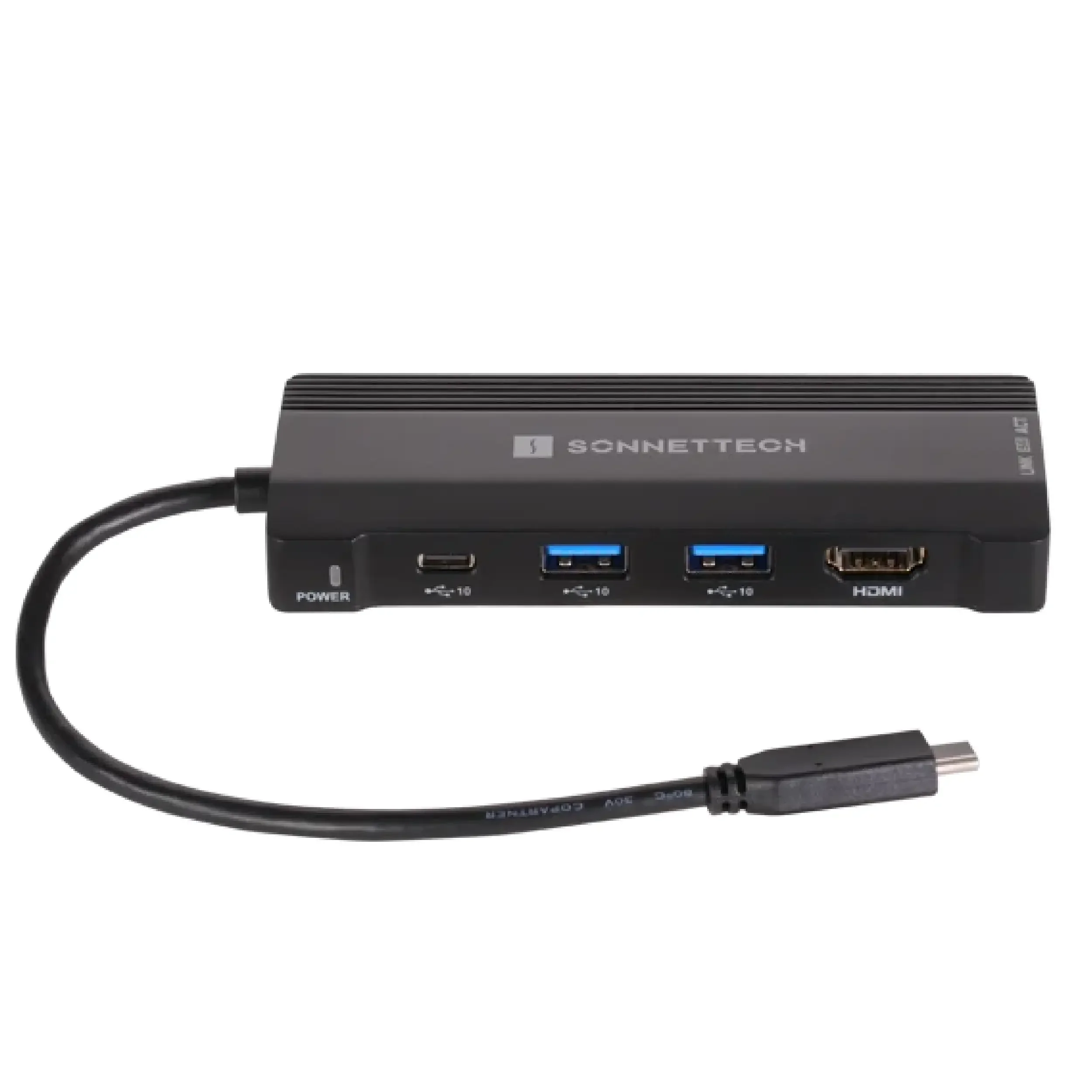

Sonnet Echo 6 Three-Port USB Multi Hub

Mac Compatibility

macOS 15+
macOS Tahoe compatible
Windows Compatibility

Windows 11
Echo 6 USB-C Multi Hub HDMI port support requires connection to a computer Thunderbolt port, or 10 Gpbs USB-C port with DisplayPort Alt Mode support
iPad Compatibility(1)

iPad Pro with USB-C or Thunderbolt port
iPad Air (4th generation or later)
iPad mini (6th generation or later)
iPad (10th generation or later)
iPadOS 17+; iPadOS 18+ required for 5Gb Ethernet speed support
Hardware
Part Number

USB-C hub
Bus Interface

USB 3.2 Gen 2
Power Delivery

Supports up to 100W USB-C power input; provides up to 85W charging to the connected computer, with 15W resever for dock operation

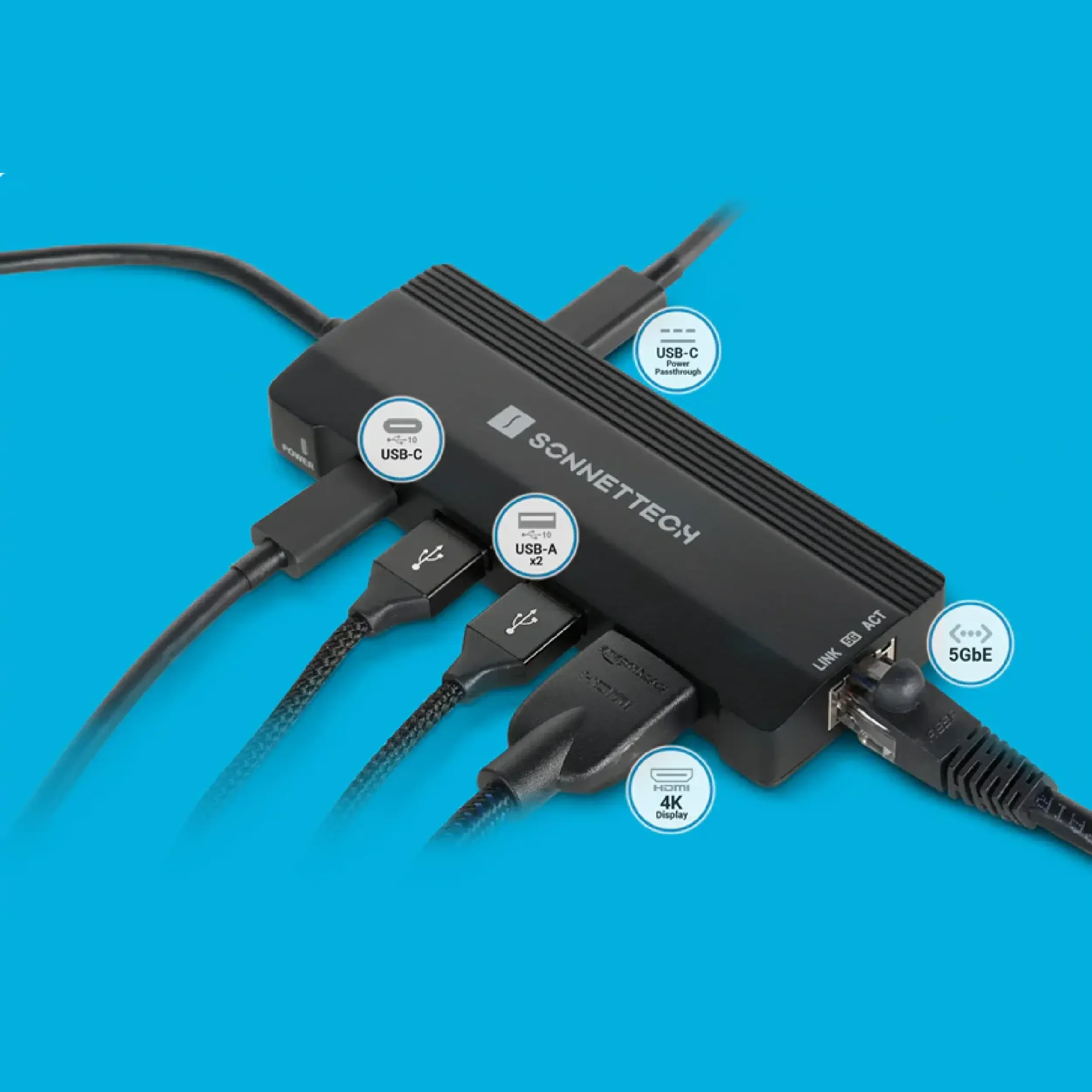

External Connectors

HDMI port
RJ45 Ethernet port
Two USB-A ports
USB-C port (no display support)
USB-C port (power passthrough)
USB-C captive cable
HDMI Standards

HDMI 2.0
HDCP 2.2
HDMI Supported Resolutions

4K 60Hz
1440p 60Hz
1080p 120Hz
RJ45 (Ethernet) Port

5GbE Controller
Realtek RTL8157
Network Support
100 meters using Cat 5e (or better) cabling
Standard
Compliant with 802.3bz-2016 and 10/100/1000 IEEE 802.2 specifications
Packets
Maximum packet size: 16352 bytes (Jumbo Frames)
Data Rates Supported
5 Gbps, 2.5 Gbps, 1 Gbps
USB 3.2 Gen 2 Type A Ports

Connectivity
With USB Type A connector
Peripherals Supported
USB 3, 2.0 and 1.1 devices
Data Transfer Rate
USB 3.2 Gen 2: 10Gbps
USB 3.2 Gen 2 Type-C Port

Connectivity
With USB Type-C connector
Peripherals Supported
USB4 and 3 devices
Data Transfer Rate
USB 3.2 Gen2: 10 Gbps
Operating Temperatures

0˚C to 35˚C (32˚F to 95˚F)
Dimensions (WxDxH)

4.75 x 1.90 x 0.75 in. (121 x 48 x 19 mm)
Weight

3 oz (86 gm)
Compliance

RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety
