Connections
SDI Video Inputs
1 x 10-bit HD-SDI, 6G-SDI and 12G-SDI
SDI Video Outputs
2 x 10-bit HD-SDI, 6G-SDI and 12G-SDI
Ethernet
Gigabit ethernet supports 3G-SDI up to 1080p60 using TICO encoding/decoding. Optional 10G optical data ethernet supporting Ultra HD up to 2160p60 using TICO encoding/decoding.
Multi Rate Support
Auto detection of HD-SDI, 6G-SDI or 12G-SDI.
Updates
USB 2.0 high speed (480Mb/s) interface or via Ethernet.
Configuration
Ethernet or USB 2.0 for firmware updates and IP address setting.
Reclocking
On all SDI outputs, auto switching between high definition, 6G-SDI or 12G-SDI video.

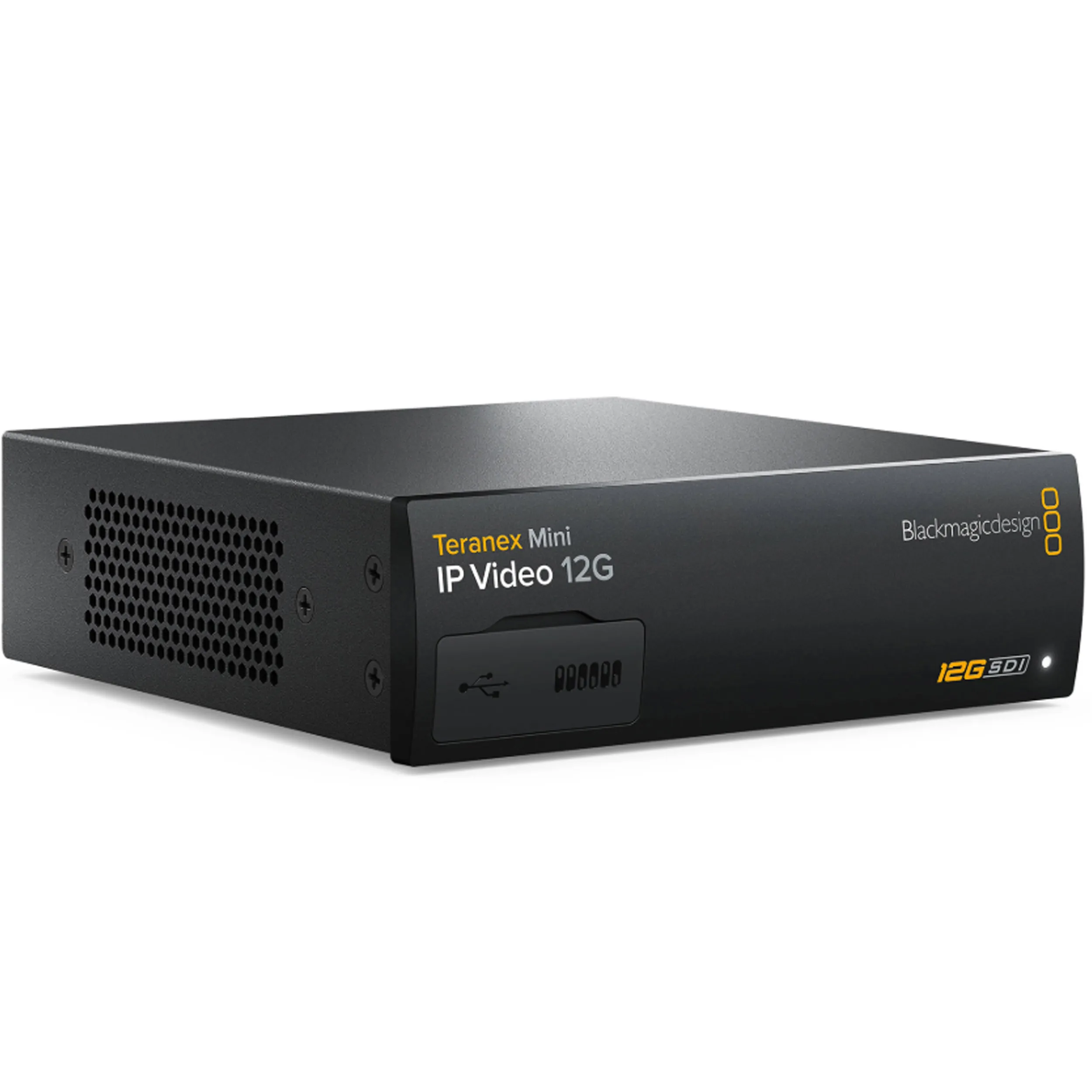

Teranex Mini - IP Video 12G
Standards
HD Video Standards
720p50, 720p59.94, 720p60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
Automatic detection of Level A or Level B SDI on 1080p50, 1080p59.94 and 1080p60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4K DCI 25p
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video input is switchable between high definition, ultra high definition and 4K. SDI switches between 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling
4:2:2 plus 4:4:4 up to 4K DCI 30p
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision
10-bit 4:2:2 and 4:4:4
SDI Color Space
YUV or RGB for inputs, YUV for SDI outputs.
SDI Auto Switching
Automatically selects between HD-SDI, 6G-SDI and 12G-SDI.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Display
Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings.
Software
Software Control
Blackmagic IP Video Setup and Videohub Router Control Software included on SD card for Windows and Mac OS X.
Internal Software Upgrade
Via included updater application.
Settings Control
Control
Built in switches, setup software utility, or optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons.
Power Requirements
Power Supply
IEC power cable required. 90 - 240V AC input.
Power Fail Protection
Settings preserved and restored instantly at power on.
Power over Ethernet
Can be powered via 48V DC using PoE+ (power over Ethernet).
Power Consumption
16 Watts
Environmental Specifications
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
